Collimated 635nm 1mW Red Dot Laser Diode Module
AimLaser provides customized 635nm Red Dot Laser Diode Modules with different output power, beam size and dimensions for industrial, medical and military defense applications etc., which uses optical glass lens and input voltage various from 3V to 12V DC.
※ 635nm 1mW Red Dot Laser Diode Module Descriptions:
The AM635D01G4 is a red dot laser subassembly with collimated beam. The maximum laser output power is 1mW at 635nm.
※ 635nm 1mW Red Dot Laser Diode Module Optical and Electrical Characteristics:
| ITEM | SPECIFICATIONS |
| Model Number | AM635D01G4 Red Dot Laser Diode Module |
| Wavelength | 635nm |
| Output Power | ≤1.0mW |
| Laser Mode | CW |
| Beam Size | ≤0.5mm@50mm |
| Divergence | 0.6mrad |
| Optics | Glass Lens |
| Operating Current | <35mA |
| Operating Voltage | 3V~5V DC |
| CDRH Class | Class II |
| Circuit control | Auto power control (APC) |
| Circuit Protection | Static, Surge, and Reverse Polarity Protected |
| Working Temperature | -10℃ to 50℃ |
| Storage Temperature | -20℃ to 60℃ |
| Dimensions | Φ10x30mm (PCB Inside) |
| Case Material | Brass |
| Life Span | 10,000Hrs |
※ 635nm Red Laser Module Applications
Gun Laser Sight
Laser Aiming Devices
Laser Alignment Instrument
Laser Pointing Instrument
Laser Positioning Devices
Laser Surveying Instrument
Laser Detection Equipment
Medical Laser Devices
Consumer Products
Other Customization Applications
※ Why buy Laser Modules from AimLaser?
1. Provide ONE YEAR warranty.
2. Offer customized solutions.
3. Lead time is from 1~4 weeks.
4. Conform to ROHS, FDA, IEC, SGS standards.
5. ISO9001, USO14001 certified laser moduel manufacturer.
6. Using original laser diodes from Arima, Osram, Nicha, QSI, Ushio, Sharp etc.

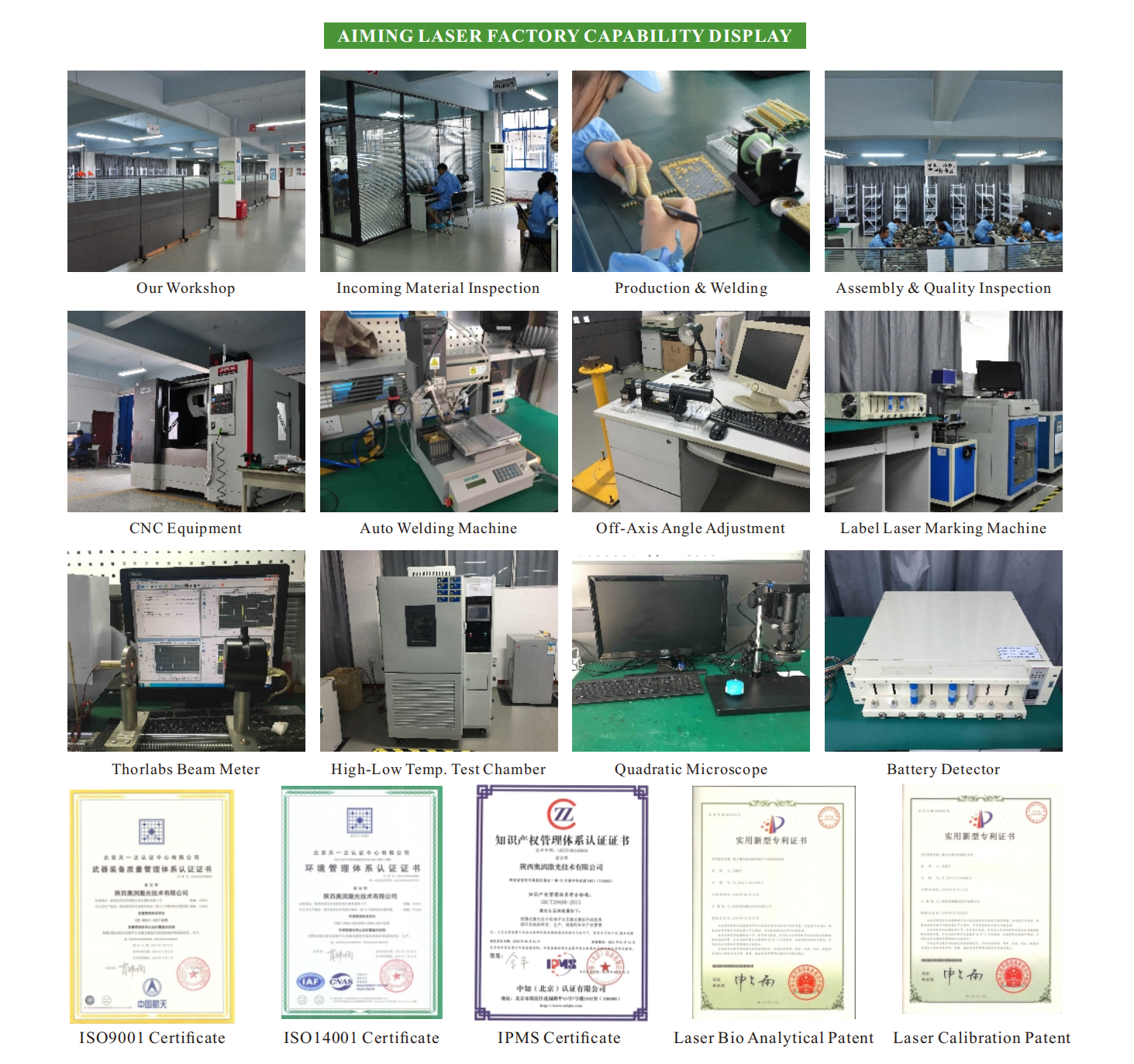

※ Laser Modules Production & Test Equipment
※ Laser Module Payment and Shipment
1. MOQ: 1pc.
2. Normal Lead Time: 1~4 weeks.
3. Payment Terms: T/T, PayPal.
4. Shipment Methods: By Air via FedEX/DHL/UPS or by Sea etc.
